Water Weigh Hopper
The 250kg capacity water hopper suspended on load cells is supplied by a 2 stage water delivery system and mounted above the mixer to ensure higher accuracy.
Concrete

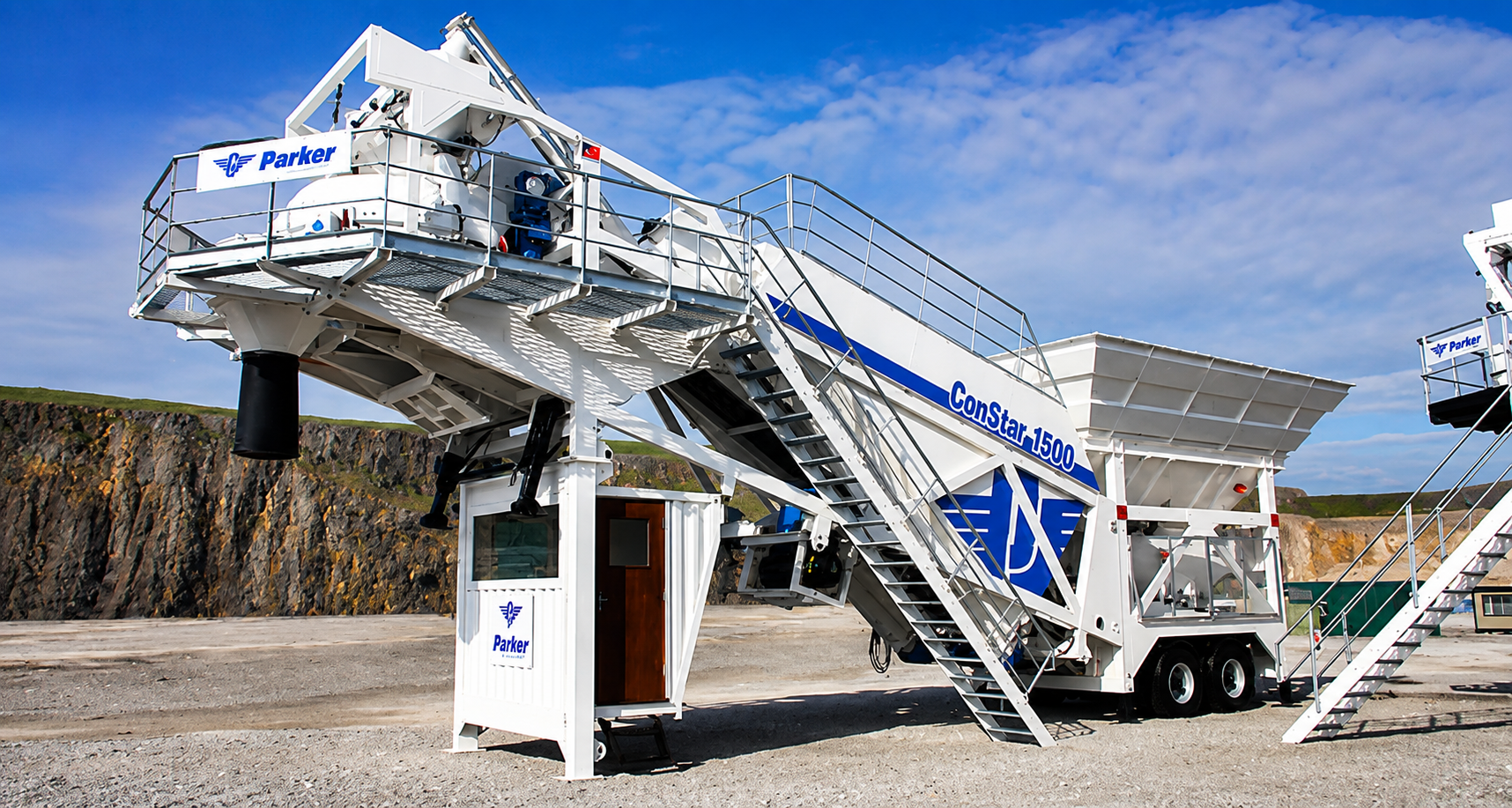

With a production capacity of up to 50m³/h, the ConStar 1500 fully portable, wheeled concrete batching plant meets all the requirements for small to medium size projects where there is a need for ready-mix or pre-cast concrete produced to high quality standards.
Semi-trailer towing is easily achieved as the integral control cabin hinges upwards within the main structure for transport. The chassis mounted 35m³ cement silo can be supplemented with either vertical or mobile horizontal silos giving additional capacity and/or greater mix design.
Controls on the ConStar 1500 are easy to use, designed to ensure high levels of accuracy, batch repeatability and mix consistency which are vital for the production of high quality, high strength concrete.
Cement Weigh Hopper
Mounted above the pan mixer, the cement weigh hopper features two 350kg capacity hoppers mounted on three load cells for accurate weighing.
Transfer Conveyor
Aggregates are transferred to the mixer via an 800mm wide chevron belt conveyor.
Retractable Screws
Two external delivery screws feed into the the cement weigh hopper and retract back on rollers for transport.
Access & Walkways
The extensive access & maintenance platforms are provided to mixer level are easily removed for transportation.
Feed Hopper
Has four compartments for different aggregate sizes, each compartment holding 11m³ of material with bolted hopper extensions which are removed for transport. Vibrators are mounted on two of the hoppers to prevent build up of fine material.
Aggregate Weigh Conveyor
Suspended on load cells, the 800mm wide troughed weigh conveyor has a combined volumetric weighing capacity of 1.5m³ from all hoppers.
Cement Silo
The integral, chassis mounted 35m³ capacity cement silo mounted above the transfer conveyor has two discharge troughs each with high and low level indicators. Cement is delivered to the weigh hoppers via two internally fitted screws.
Control Cabin
The control cabin is pre-wired and fully tested prior to despatch. The Constar PLC based control system gives fast, accurate measurement of mix ingredients, as well as monitoring dynamic aspects of the plant for continuous and safe operation.
Pan Mixer
The high quality pan mixer features hard wearing abrasive resistant liner plates, paddle arms and tips. The arms are spring loaded and adjustable to compensate for wear and the paddle tips can be adjusted to increase or decrease the angle.
>
