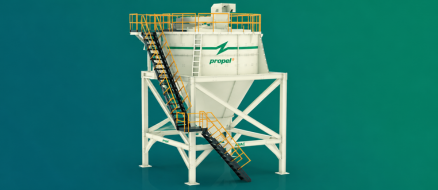

PRO AIR CLASSIFIER
AVAC SERIES
Propel Pro Air Classifier offers the most efficient dry – classifying solution to remove fines from natural sand or crushed sand. It combines gravitational, inertial, centrifugal and aerodynamic forces to efficiently classify materials to increase productivity.
Highlights
Pro Air Classifier produces high quality sand for all range of applications including concrete manufacture (M-Sand).
Stand – alone modular units to integrate with existing plants.
Product of 100 micron or smaller blind particles can be classified without screen.
Propel Pro Air Classifier is eco-friendly and removes fines without using a single drop of water.
The parts of the equipment which are exposed to sand surfaces are covered with wear liners.
Watch Video
Technical Data
| SERIES | UNITS | AVAC 100 | AVAC 150 | AVAC 200 |
|---|---|---|---|---|
| Diameter | mm (inch) | 3100 (122.0) | 3800 (149.6) | 4350 (171.3) |
| Feed Size (Max.) | mm (inch) | 6 (0.2) | 6 (0.2) | 6 (0.2) |
| *Capacity | TPH | 60 - 70 | 90 - 120 | 120 - 160 |
| Air Flow | cfm | 200 - 400 | 300 - 600 | 400 - 850 |
| Moisture (Max.) | % | 2 | 2 | 2 |
| Motor Power | kW (hp) | 30 60 | 45 60 | 55 75 |
| Weight | kg (Ton) | 11200 (11.2) | 15700 (15.7) | 17000 (17.0) |
*Details may vary based on application
Note: All the above technical details may vary at any time during engineering process & design development
