VIBRATING SCREEN

VIBRATING SCREEN

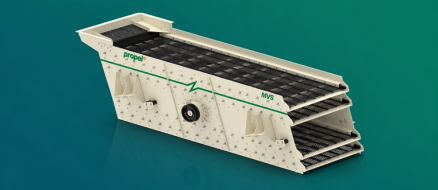

MVS SERIES

Propel MVS screens are versatile. They can be used for primary, secondary and tertiary screening. MVS screen standard slope angle is 18 ° but can be modified for special applications. It can be used for wet screening fitted with spray pipes.

Propel AVJ Series Jaw Crusher

Highlights

High screening capacity and excellent performance.
Circular motion modular vibrators with two bearings per vibrator, interconnected by cardan shaft.
Unique angle of the circular motion MVS Screens are able to achieve higher productivity.
Modular design is available either as 1, 2, 3 or 4 deck and has excellent segregation to suit the aggregate and mining industries requirements.
Stroke adjustment through counter weight. Grease lubrication system ensures easy and low maintenance.

Watch Video

Technical Data

SERIES UNITS MVS 1540 MVS 1845 Dual Slope 1860 MVS 2060 MVS 2561 MVS 1850
Screen Size
(W x L)		 mm
(inch)		 1500 x 4000
(59.1 x 157.5)		 1800 x 4500
(71.0 x 177.2)		 1850 x 6000
(72.9 x 236.2)		 2000 x 6000
(78.7 x 236.2)		 2500 x 6100
(98.4 x 240.2)		 1800 x 5000
(70.9 x 196.9)
Screening Area sq.m 6.0 8.1 11.1 12.0 15.1 8.91
*Capacity TPH 300 400 600 650 800 200
Number of Decks 2 / 3 / 4 2 / 3 / 4 4 2 / 3 / 4 3 / 4 1
Mounting Type (optional) Skid Skid Skid Skid Skid Skid
Screen Position Inclined Inclined Inclined Inclined Inclined Inclined
Type of Motion Circular Circular Elliptical Circular Circular Circular
Motor Power kW
(hp)		 15
(20)		 15
(20)		 15
(20)		 22
(30)		 30
(40)		 2X5
(6.7)
Weight kg
(Ton)		 3500 / 4300 / 5100
(3.5 /4.3 / 5.1)		 4000 / 4800 / 5400
(4.0/ 4.8 / 5.4)		 7600
(7.6)		 6600 / 7500 / 8700
(6.6/ 7.5 / 8.7)		 12500 / 14500
(12.5 / 14.5)		 4000
(4.0)

*Details may vary based on application

**Motor Power for MVS 1540 single deck

Note: All the above technical details may vary at any time during engineering process & design development
